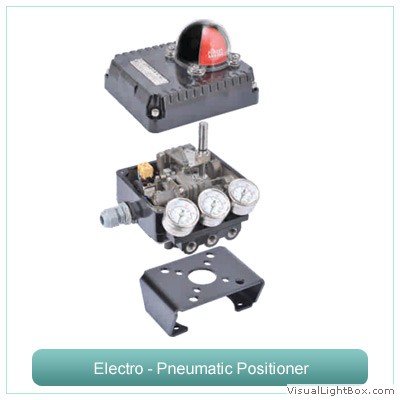

ELECTRO - PNEUMATIC POSITIONER
  Compact design, rugged construction with rigid ISO 5211 Mounting
  Vibration resistant because of its unique design and construction
  Quick and ultra-precise response of the torque motor
  Special polymer shaft bush with built in grease reservoir to avoid shaft seizure     due to formation of Aluminium oxide
  Split range control can be easily adopted by change in few internal components
  Simple to convert from direct acting to reverse acting or vice versa
  The springs exhibit a stable force along with a highly balanced diaphragm
  Low hysteresis due to lip seal instead of an O-ring which result in high gain and     low friction
  Various orifice size option available for different volume of actuator to prevent     from hunting and also for controlling speed
  Easy and precise calibration with Zero and Span adjustment
  All the internal parts are hard anodized
  Bright visual indicator on both flat and high dome type positioners
  Internal and external mounting of the position transmitter and limit switch made     possible and easy
  No component is exposed, thus preventing from corrosion in hazardous     environment
  IP66 protection
  CE certified

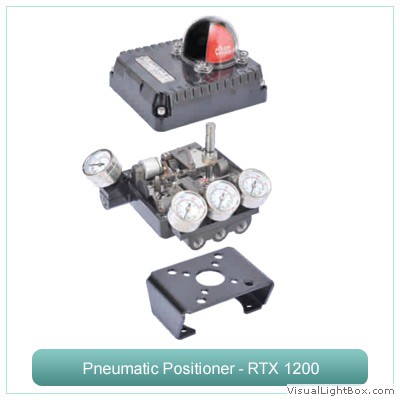

PNEUMATIC POSITIONER - RTX1200
  Special polyethylene low pressure diaphragm direct acting valve ensures quick     and precise response to minor changes in signal pressure
  Zero hysteresis increases overall efficiency
  Normal operation in extreme environmental conditions such as vibration
  High life of diaphragm and zero maintenance
  Compact design, rugged construction with as rigid ISO 5211 mounting
  Wide range of Zero and Span adjustment, for easy and precise calibration
  Stable, fast and accurate response with change in supply pressure due to unique poppet and diaphragm valve design
  All the internal parts are hard anodized
  Split range control can be easily adopted by change in few internal parts
  Simple to convert from direct acting to reverse acting or vice versa
  Throughout there is a stable spring force along with a highly balanced diaphragm
  Low hysteresis due to lip seal instead of an O-ring which result in high gain and low friction
  Orifice option prevents from hunting and also for controlling speed
  Bright visual indicator on both flat and high dome type positioners
  Internal and external mounting of the position transmitter and limit switch made possible and easy
  Internal circuit of the positioner is highly corrosion resistant as no part (metal plate) is exposed
  IP66 protection
  CE certified

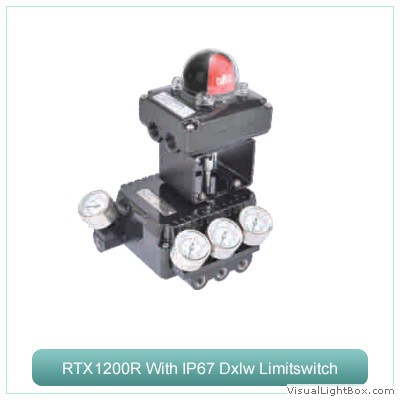

RTX1200R WITH IP67 DXLW LIMITSWITCH
  Aluminium Diecast, with powder coating, for superior corrosion resistance
  Shatterproof Polycarbonate Dome
  Easily settable colour coded cam
  The locked serrated cams, ensures the secured settings against any vibration
  Complies to NAMUR Mounting standards
  Possible Solenoid termination inside the switch box
  The switch box confirms to the UL508, UL file no. E249752
  Temperature range -20 °C to +80 °C On request -40 °C to +80 °C

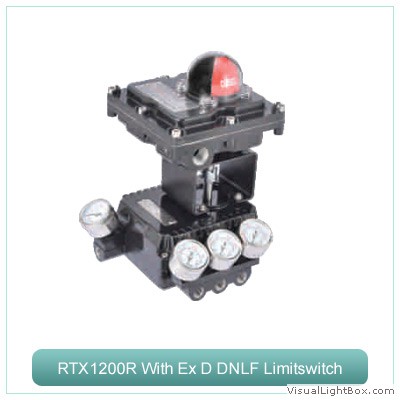

RTX1200R WITH Ex d DNLF LIMITSWITCH
  Aluminium Diecast, with powder coating, for superior corrosion resistance
  Shatterproof Polycarbonate Dome
  Easily settable colour coded cam
  The locked serrated cams, ensure the secured settings against any vibration
  Switch Box confirms to Ex d IIC, T4 Highest level of safety
  Cable Entry M20, 1/2” NPT or 3/4” NPT
  All fasteners in stainless steel
  Water, Rain Proof to IP67
  ATEX, certified by IEC Ex, BASEEFA, UK, Certification no. Baseefa09, ATEX0126
  UL Certified confirms to file no. UL1203 and UL508, File no. 246615
  Temperature range -20 °C to +80 °C On request -40 °C to +80 °C
  Cable entry Dual cable entry Optional 4 cable entry
  Optional Stainless Steel version is also available

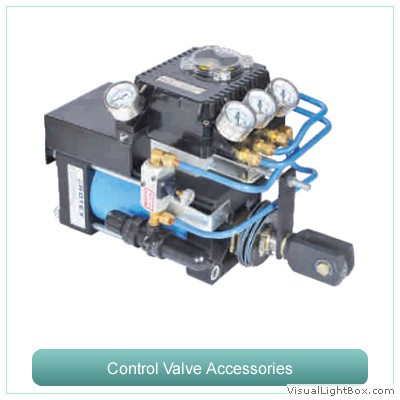

CONTROL VALVE ACCESSORIES
  Linear Cylinder with cam plate
  Cam plate can be reversed at site for fail safe open (Reverse Actuation)
  Cam can be profiled to Equal, Square root, Linear Cylinder or equal percentage

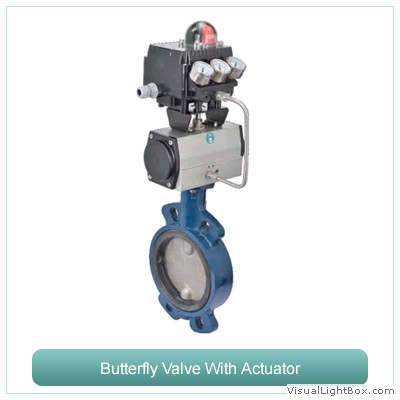

BUTTERFLY VALVE WITH ACTUATOR
  90º Rotation Positioner
  Zero backlash due to ISO mounting
  Characteristic of flow can be 14 adjusted to need by ordering special cam
  Double acting and Single acting both can be installed by ROTEX Positioners

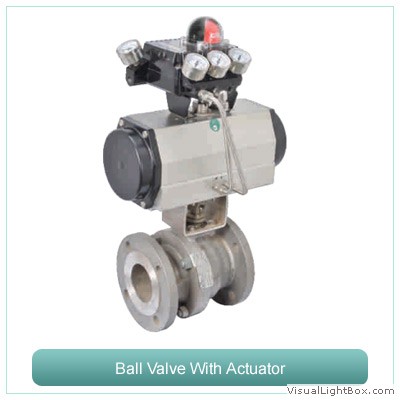

BALL VALVE WITH ACTUATOR
  Various ball valve like, ‘O’ ball, ‘V’ notch ball can be regulated by ROTEX
  Speed of rotation can be adjusted by replacing different orifices
  Calibration of valve can be matched precisely with opening and closing due to     low hysteresis

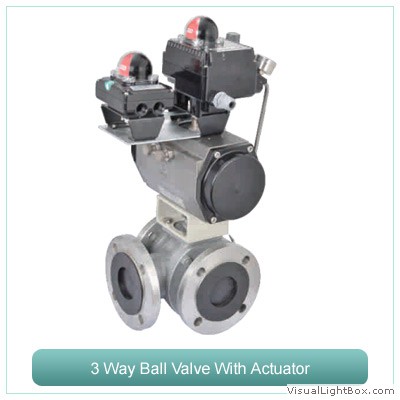

3 WAY BALL VALVE WITH ACTUATOR
  3 way valve can be used for continuous line diverting liquid back to tank.     Provides unique constant pressure system
  Special cam profiles available on ROTEX for this application
  Speed can be controlled to avoid over travel
